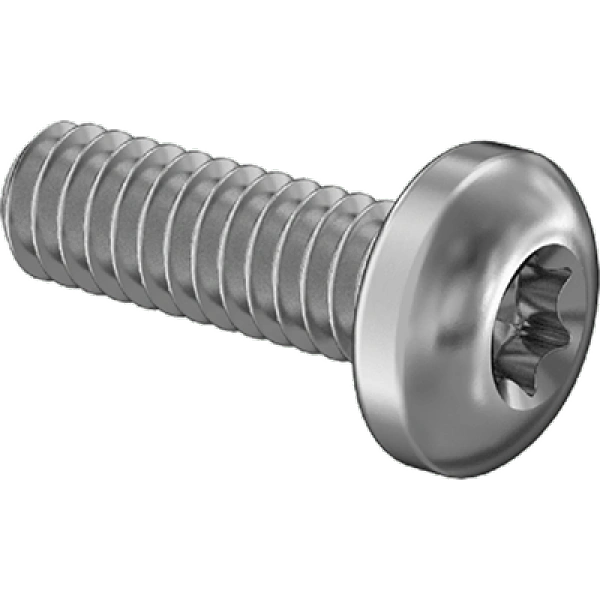

S-96710A110 0-80 x 1/8" Stainless Steel Pan Head Torx Plus Screws

Key Features & Benefits at a Glance

• Superior corrosion resistance with 18-8 stainless steel construction and passivated finish for extended service life in harsh environments
• Enhanced torque transmission and reduced cam-out thanks to Torx Plus IP5 drive for secure fastening and improved assembly efficiency
• Reliable fine thread engagement with UNF Class 2A thread fit ensuring precise, vibration-resistant connections in compact assemblies
• High mechanical strength delivering 70,000 psi tensile strength and Rockwell B55 hardness for demanding load-bearing applications
• Full threading design providing consistent grip along the entire 1/8" length for maximum holding power
• Rounded pan head profile offering a low-profile, finished appearance while accommodating standard installation tools
• Compliance with environmental regulations including RoHS 3 and REACH for global market acceptance and sustainable manufacturing

Professional Applications & Engineering Value

These precision 0-80 UNF fine thread screws with Torx Plus drive address critical challenges in industrial assembly where space constraints and corrosion resistance are paramount. The combination of 18-8 stainless steel material and passivated finish provides exceptional protection against oxidation and chemical exposure, making them ideal for electronics, medical devices, and marine equipment. The fine thread spacing ensures superior vibration resistance in high-frequency environments, while the fully threaded design maximizes connection integrity across the entire fastener length. Engineered for precision instrumentation and compact machinery, these screws deliver reliable performance where standard fasteners would fail due to size limitations or environmental factors.

Specification Summary & Compliance

This rounded pan head screw features precision UNF Class 2A thread fit with 0-80 thread size and fine thread spacing, manufactured to exacting dimensional standards. The fastener meets RoHS 3 (2015/863/EU) and REACH (EC 1907/2006) compliance requirements, ensuring environmental responsibility and regulatory acceptance for industrial applications worldwide. With complete threading along its 1/8" length and Torx Plus IP5 drive compatibility, it delivers consistent performance across automated and manual assembly processes.
