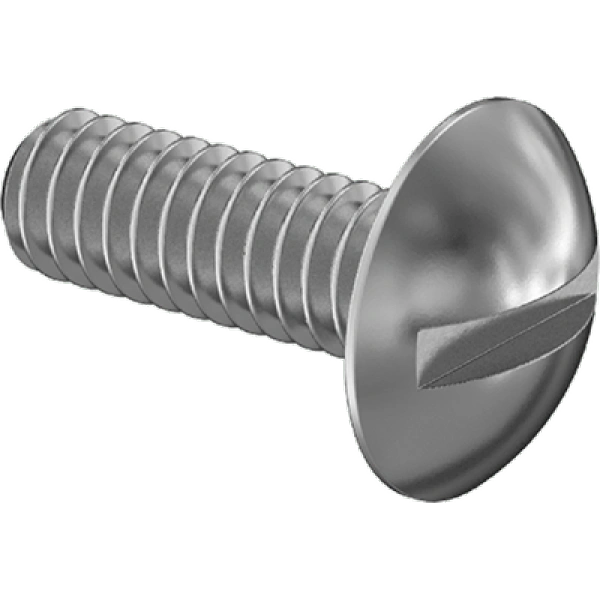

S-91785A092 4-40 x 1/4" ASME B18.6.3 Stainless Steel Truss Head Slotted Screws
Stainless Steel Truss Head Slotted Screws
Image may differ from product. See technical specification for details.
Basic Information
Head Parameters
Dimensions
Thread Parameters
Tip & Drive Parameters
Material & Strength
Temperature & Environment
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
Key Features & Benefits at a Glance
- Enhanced corrosion resistance with 18-8 stainless steel construction and passivated finish for long-term reliability in harsh environments.
- Superior load distribution from the wide truss head design, reducing surface pressure and preventing material damage.
- High tensile strength of 100,000 psi ensures dependable performance under heavy mechanical stress and vibration.
- Easy installation and removal with a standard slotted drive, compatible with common hand tools for efficient assembly.
- Precise thread engagement through Class 2A fit and coarse UNC threading, providing secure fastening and reduced cross-threading risk.
- Full threading along the 1/4" length allows for adjustable grip depth and consistent holding power across applications.
- Compliance with industry standards including ASME B18.6.3, RoHS 3, and REACH, ensuring safety and environmental responsibility.
Professional Applications & Engineering Value
This 4-40 UNC rounded truss head slotted screw is engineered to address common industrial fastening challenges, such as vibration loosening and corrosion-induced failure. The 18-8 stainless steel material, combined with a passivated finish, provides excellent resistance to oxidation and chemical exposure, making it ideal for electronics, machinery, and outdoor equipment. The wide truss head design distributes clamping force over a larger area, protecting sensitive surfaces and maintaining joint integrity. With a coarse thread and Class 2A fit, it ensures quick assembly and reliable performance in high-stress environments, reducing maintenance needs and downtime.
Specification Summary & Compliance
The screw features a 1/4" length with fully threaded #4-40 UNC coarse threads and Class 2A thread fit for precise dimensional accuracy. It meets ASME B18.6.3 specifications for slotted truss head screws and is compliant with RoHS 3 (2015/863/EU) and REACH (EC 1907/2006) regulations, ensuring it is free from hazardous substances and suitable for global industrial use.
