S-94701A223 6-32 x 3/8" ASME B18.6.3 Plastic Pan Head Slotted Screws

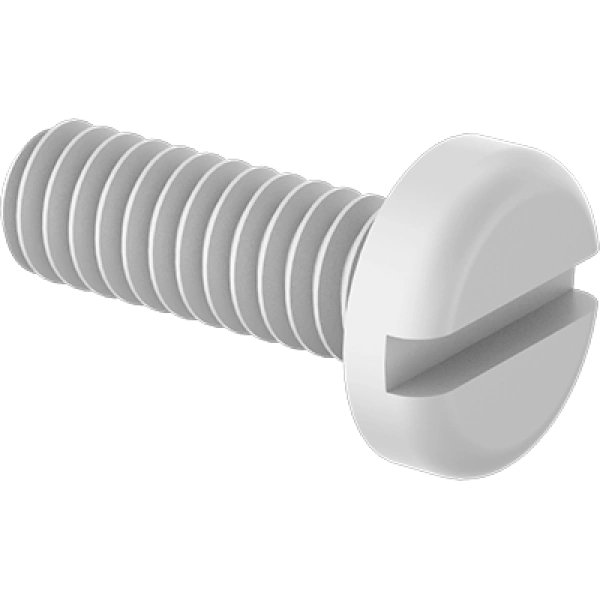

Plastic Pan Head Slotted Screws
Image may differ from product. See technical specification for details.
Basic Information
Head Parameters
Dimensions
Thread Parameters
Tip & Drive Parameters
Material & Strength
Temperature & Environment
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
Key Features & Benefits at a Glance
- Exceptional temperature resistance from -350° to 500°F for reliable performance in extreme thermal environments
- Superior chemical inertness and corrosion resistance due to PTFE plastic construction, ideal for harsh industrial settings
- Precision Class 2A thread fit with 6-32 UNC coarse threading ensures secure, vibration-resistant fastening
- Fully threaded design provides maximum grip and load distribution across the entire length
- Easy installation and removal with standard slotted drive for straightforward manual assembly
- Compliant with ASME B18.6.3 standards guaranteeing dimensional accuracy and manufacturing consistency
- RoHS 3 and REACH compliant meeting strict environmental and safety regulations for global applications
Professional Applications & Engineering Value
This PTFE plastic pan head screw delivers critical engineering advantages in demanding environments where metal fasteners fail. The chemically inert PTFE material eliminates corrosion concerns in chemical processing, food manufacturing, and laboratory equipment, while its broad temperature range (-350° to 500°F) maintains structural integrity in thermal cycling applications. The 6-32 UNC coarse threading with Class 2A fit provides reliable engagement in plastic and soft materials, reducing stripping risks. The fully threaded design maximizes pull-out strength, making it ideal for electronic enclosures, medical devices, and aerospace components where electrical insulation and contamination prevention are paramount.
Specification Summary & Compliance
This rounded head screw features precise 6-32 UNC coarse threads with Class 2A fit tolerance ensuring consistent engagement. Manufactured to ASME B18.6.3 specifications for dimensional accuracy, it maintains 3/8" length and standard pan head profile. The product is fully compliant with RoHS 3 (2015/863/EU) and REACH (EC 1907/2006) regulations, meeting current environmental and substance restriction requirements for industrial use.
