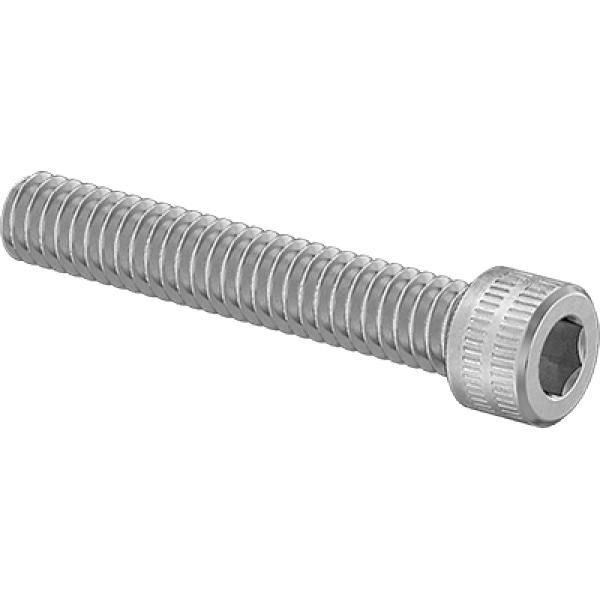

S-92200A054 0-80 x 3/16" MS16996-2, NAS1351C00-3, NASM16996, FF-S-86 Mil. Spec. 18-8 Stainless Steel Socket Head Screws
Mil. Spec. 18-8 Stainless Steel Socket Head Screws
Image may differ from product. See technical specification for details.
Basic Information
Head Parameters
Dimensions
Thread Parameters
Tip & Drive Parameters
Material & Strength
Temperature & Environment
- Fast delivery
- Enjoy discounts on bulk purchases
- Secure Payment
- Fast Global Shipping
Key Features & Benefits at a Glance
- Exceptional corrosion resistance with 18-8 stainless steel construction and passivated finish, ensuring long-term reliability in harsh environments
- Superior thread engagement through Class 3A fine UNRF threads, providing precise fit and vibration resistance in critical assemblies
- High tensile strength rating of 80,000 PSI delivers reliable performance under substantial mechanical loads
- Optimized torque transmission via hex socket drive design, preventing tool slippage and ensuring secure installation
- Industry-standard compliance with MS16996-2, NAS1351C00-3, and NASM16996 specifications guarantees consistent quality and interchangeability
- Environmental regulation adherence through RoHS 3 and REACH compliance for safe use in regulated industries
- Compact precision design with 3/16" length and 0-80 thread size ideal for space-constrained applications requiring fine-thread fasteners
Professional Applications & Engineering Value
These socket head cap screws with 0-80 UNRF fine threads and Class 3A fit address critical challenges in precision assembly applications. The 18-8 stainless steel material combined with passivated finish provides excellent resistance to corrosion and chemical exposure, making them ideal for aerospace, electronics, and medical equipment where reliability is paramount. The hex socket drive ensures maximum torque application without damaging the fastener head, while the fine thread pitch delivers superior clamping force distribution and vibration resistance in thin-section materials. These industrial screws meet rigorous MS16996-2 specifications, ensuring consistent performance in high-stress environments where fastener failure is not an option.
Specification Summary & Compliance
Manufactured to precise Class 3A thread fit tolerances with UNRF fine thread profile (0-80 size). Compliant with MS16996-2, NAS1351C00-3, and NASM16996 specifications, along with Fed. Spec. FF-S-86. Meets environmental standards including RoHS 3 (2015/863/EU) compliance and REACH (EC 1907/2006) requirements. Features 80,000 PSI tensile strength and fully threaded design for maximum engagement strength.
